Alef 15° angled abutment by MSDI – short

Alef Angled Abutment

$30.00 USD

Angle 15° 25°

Height 9 mm 11 mm

Need several sizes or types at once? Build an order list here, then add the whole list to your cart in one step. This is separate from the Add to cart button above, and your order list is saved on this device until you add it to the cart.

Loading…

Product details & FAQ

The Alef angled abutment corrects the axis of an implant that was placed with an angulation relative to the planned crown. It is a titanium abutment for cement-retained restorations on the Alef internal-hex implant and is offered in two angulations, 15° and 25°, and two heights, 9 mm and 11 mm. Correcting the axis at the abutment level lets the clinician build a restoration that sits correctly in the arch even when anatomy or surgical constraints limited the implant position.

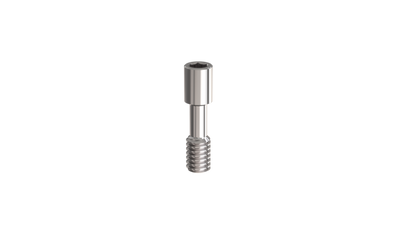

Each abutment is delivered with its corresponding abutment screw, ALAS.

Choosing the angulation

Use the 15° abutment for modest corrections and the 25° abutment where the implant axis differs more from the intended crown axis. Evaluate the angulation on the radiograph or CBCT and on the working model before deciding. If you need a defined shoulder and a choice of collar height, see the Alef angled abutment with shoulder.

Choosing the height

The 9 mm version suits cases with limited interocclusal space; the 11 mm version (codes ending in L) provides additional height when more space is available. Check the available space before ordering.

Specifications

Material: titanium
Connection: Alef internal hex, Ø3.5 mm platform
Angulations: 15° (AA15, AA15L) and 25° (AA25, AA25L)
Heights: 9 mm and 11 mm
Maximum recommended torque: 35 Ncm
Supplied with abutment screw ALAS

Ordering notes

Select the angle and height above; the reference code (SKU) is shown for each combination. The torque values are maximum recommendations and should not replace the clinician’s judgment. Adapt torque to the clinical conditions, bone quality and the patient’s specific situation.

These abutments are designed for the Alef system and are not interchangeable with the Til or Conix connections.

Regulatory

MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Disclaimer: some products may not have regulatory clearance for sale in specific territories. Please read the instructions for use (IFU) before use.
