Conix Angled Abutment
Product details & FAQ
Angled titanium abutments for the Conix implant, NP and RP, in 15° and 25° with collar heights of 1 and 3 mm, to correct the implant axis.
Key features
- NP and RP platforms
- 15° and 25° angulation
- Collar heights 1 and 3 mm
- Maximum recommended torque: 35 Ncm
Sizes and references
Select platform, angle, collar height above. Each combination has its own reference code (SKU), listed below.
| Reference (SKU) | Platform | Angle | Collar Height |
|---|---|---|---|
| NPA151 | NP | 15° | 1 mm |
| NPA153 | NP | 15° | 3 mm |
| NPA251 | NP | 25° | 1 mm |
| NPA253 | NP | 25° | 3 mm |
| RPA151 | RP | 15° | 1 mm |
| RPA153 | RP | 15° | 3 mm |
| RPA251 | RP | 25° | 1 mm |
| RPA253 | RP | 25° | 3 mm |
How to choose
Choose the angle to correct the implant axis and the collar height by the gingival thickness.
Compatibility
Designed for the Conix conical-hex implant (NP or RP platform). Do not combine with components of another MSDI system; each system has its own connection geometry.
Regulatory
MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Some products may not have regulatory clearance for sale in specific territories. See the instructions for use (IFU).
Frequently asked questions
Which implant does this fit?
The Conix conical-hex implant (NP or RP platform) only. Components from other MSDI systems are not interchangeable.
Where can I find instructions for use?
The IFU for all MSDI products is available at eifu.msdi-dental.com. Always read it before use.

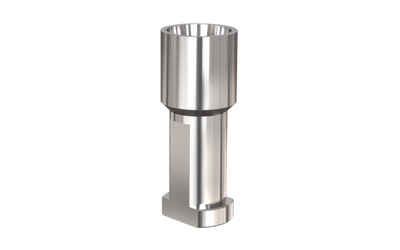

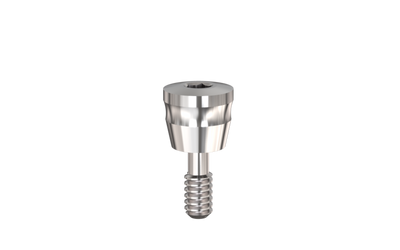

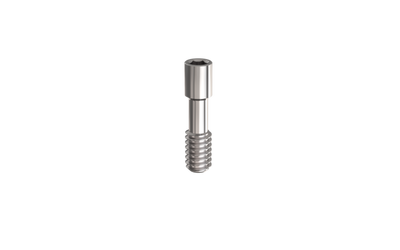

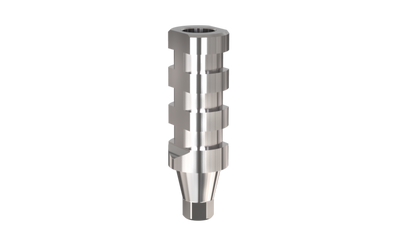

Complete your case
