Conix Ball Attachment System

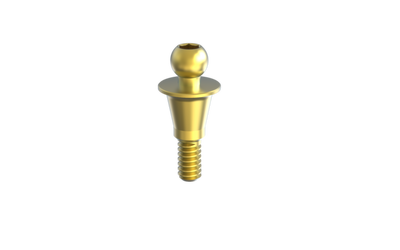

Conix narrow platform ball attachment by MSDI – view 1

Product details & FAQ

The ball attachment system for Conix implant-retained overdentures: NP (Ø3.5 mm) and RP (Ø5.0 mm) ball abutments in six collar heights, with the metal housing and silicone caps in three retention strengths.

Key features

NP ball abutments NPBA1 to NPBA6, RP ball abutments RPBA1 to RPBA6
Metal housing BAMH
Silicone caps: clear (standard), pink (soft), yellow (strong)
Maximum recommended torque: 35 Ncm

Sizes and references

Select item above. Each combination has its own reference code (SKU), listed below.

Reference (SKU)	Item
NPBA1	NP Ball Abutment 1 mm
NPBA2	NP Ball Abutment 2 mm
NPBA3	NP Ball Abutment 3 mm
NPBA4	NP Ball Abutment 4 mm
NPBA5	NP Ball Abutment 5 mm
NPBA6	NP Ball Abutment 6 mm
RPBA1	RP Ball Abutment 1 mm
RPBA2	RP Ball Abutment 2 mm
RPBA3	RP Ball Abutment 3 mm
RPBA4	RP Ball Abutment 4 mm
RPBA5	RP Ball Abutment 5 mm
RPBA6	RP Ball Abutment 6 mm
BAMH	Metal Housing
BACAP	Silicone Cap – Clear (Standard)
BACAPP	Silicone Cap – Pink (Soft)
BACAPY	Silicone Cap – Yellow (Strong)

How to choose

Pick the platform that matches the implant, the collar height by gingival thickness, and the cap by the retention you need.

Compatibility

Ball abutments are platform-specific (NP or RP). The metal housing and silicone caps are shared MSDI attachment parts and are listed here for convenience.

Regulatory

MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Some products may not have regulatory clearance for sale in specific territories. See the instructions for use (IFU).
