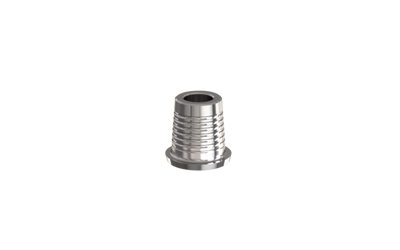

Conix Multi-Unit M1.6 System

Multi-unit abutments (M1.6) for Conix implants, NP and RP, for screw-retained full-arch and multi-unit restorations. Straight, 17° and 30° versions.

Key features

• NP and RP platforms
• Straight 1 to 5 mm; angled 17° and 30° in 1 to 3 mm
• Abutment screws NPMUASC and RPMUASC
• Maximum recommended torque: 35 Ncm

Sizes and references

Select platform, type, collar height above. Each combination has its own reference code (SKU), listed below.

How to choose

Use angled abutments to bring the screw access to a convenient position and choose the collar height by gingival thickness. Other M1.6 components are listed on the Alef M1.6 system page.

Compatibility

Designed for the Conix conical-hex implant (NP or RP platform). Do not combine with components of another MSDI system; each system has its own connection geometry.

Regulatory

MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Some products may not have regulatory clearance for sale in specific territories. See the instructions for use (IFU).

Frequently asked questions

Which implant does this fit?

The Conix conical-hex implant (NP or RP platform) only. Components from other MSDI systems are not interchangeable.

Where can I find instructions for use?

The IFU for all MSDI products is available at eifu.msdi-dental.com. Always read it before use.
