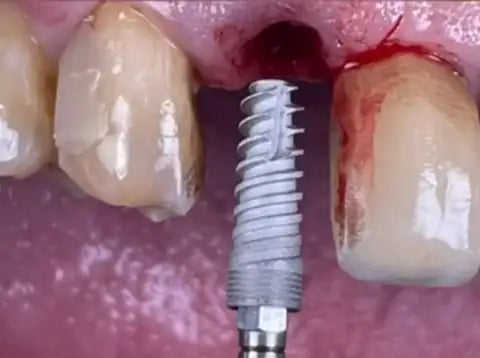

The Conical implant is specially designed to deliver high primary stability in demanding situations, such as soft bone or extraction sockets. It can be used successfully for all bone types.
Conical Internal Hex- The combination of the conical connection along with the famous hexagonal interlocking creates high mechanical strength, which ensures stability and smooth restoration process.
The internal hexagon disables the need for special surgical instruments, allowing easy implementation and requires nothing but a standard surgical kit.
Diversification- The conical connection implant system offers Regular and Narrow platform.
The Regular platform (RP 4.3/5.0) is designed for posterior cases which require wider base, therefore offers to opportunity to achieve a natural molar emergence profile.
Surface Treatment- MSDI implants are SLA treated. (Sand blasted and acid etched). The SLA has been proven to be one of the best surface treatments currently used in the dental industry. It is widely researched and proves to be very successful in the short and long term.
Plaftorm Shifting- Platform shifting keeps the implant-abutment connection away from the bone, thus minimizing bone resorption, allowing vital growth of the soft tissue. The coronal design and the platform shifting are designed to optimize bone and soft tissue volume for natural looking esthetics.
NP - D: 3.5 mm; L: 8, 10, 11.5, 13, 16 mm
RP - D: 4.3 mm; L: 8, 10, 11.5, 13, 16 mm
D: 5.0 mm; L: 8, 10, 11.5, 13, 16 mm
- Fully compatible with Nobel Active and similar brands
- Excellent Sensibility during placement
- High stability restorations
- Fast Insertion and excellent primary stability
- Platform Switching
- Self-Drilling
- Conical connection implant: Conical Internal Hex
- Material: Ti-6Al-4V (Titanium grade 5)
- Surface treatment: SLA - sand blast, double etched in acid
- Sterilization: by gamma irradiation
