Every Alef implant has an SLA surface: Sand-blasted, Large-grit, Acid-etched. Zoom in from the implant to the electron microscope to see the texture that bone grows onto.
1×
Move over the image, or press and drag on mobile, to use the magnifier.

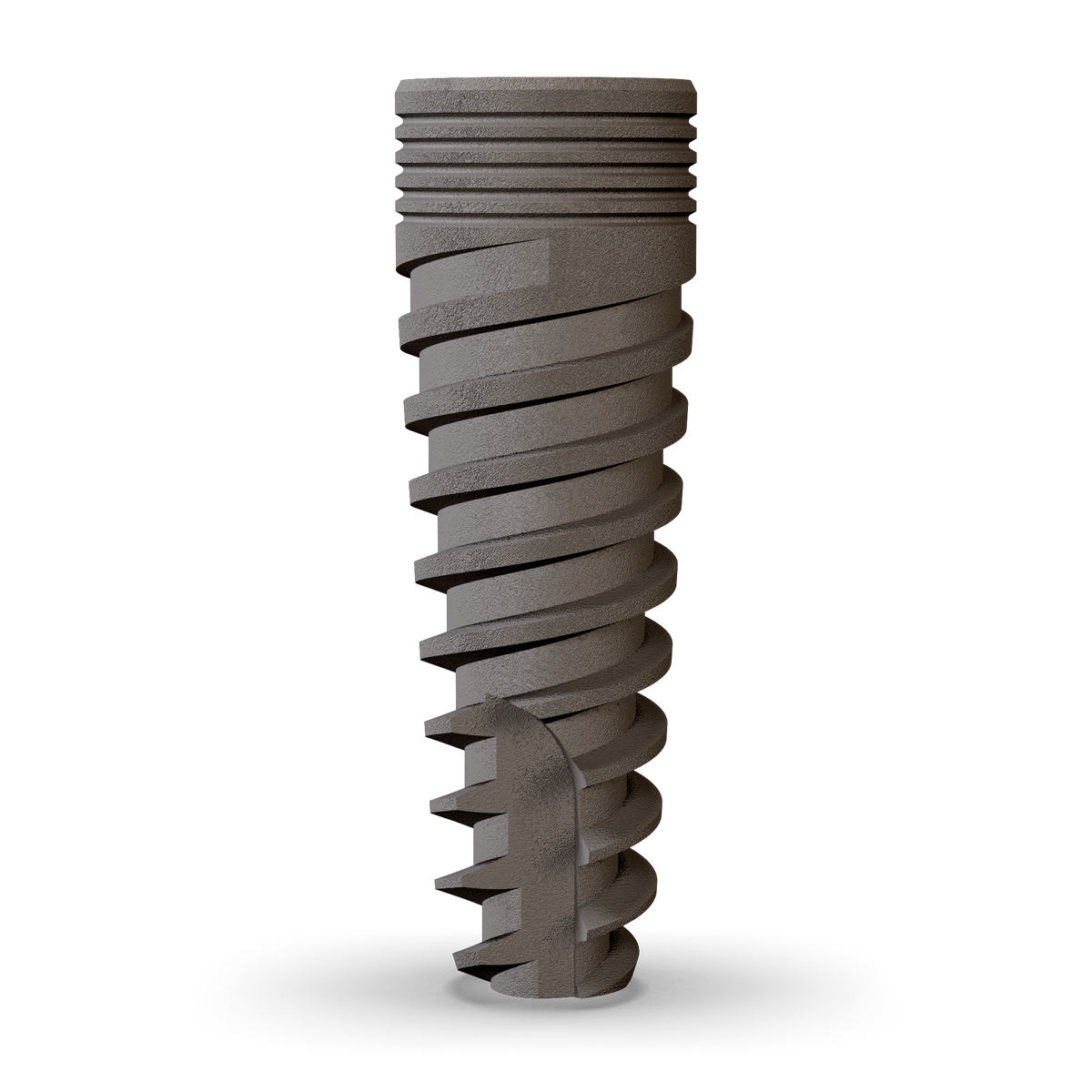

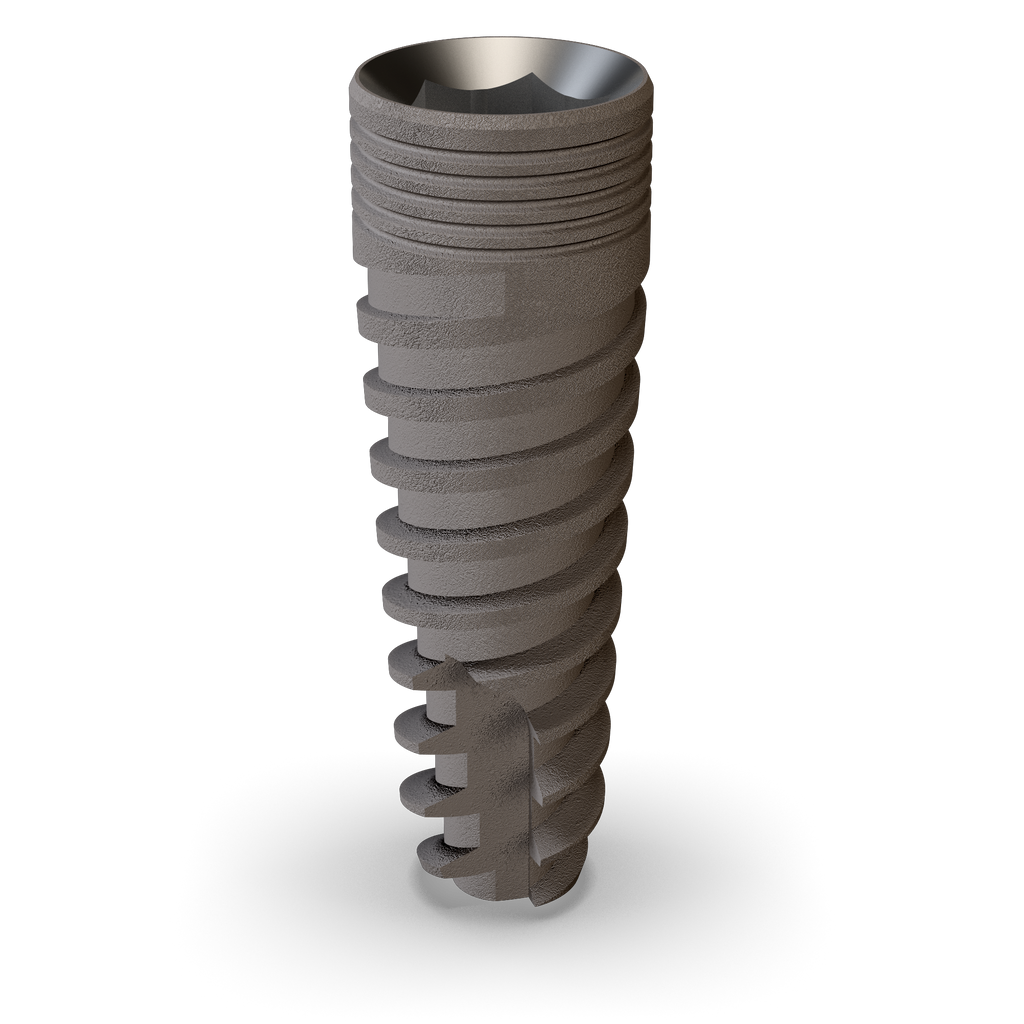

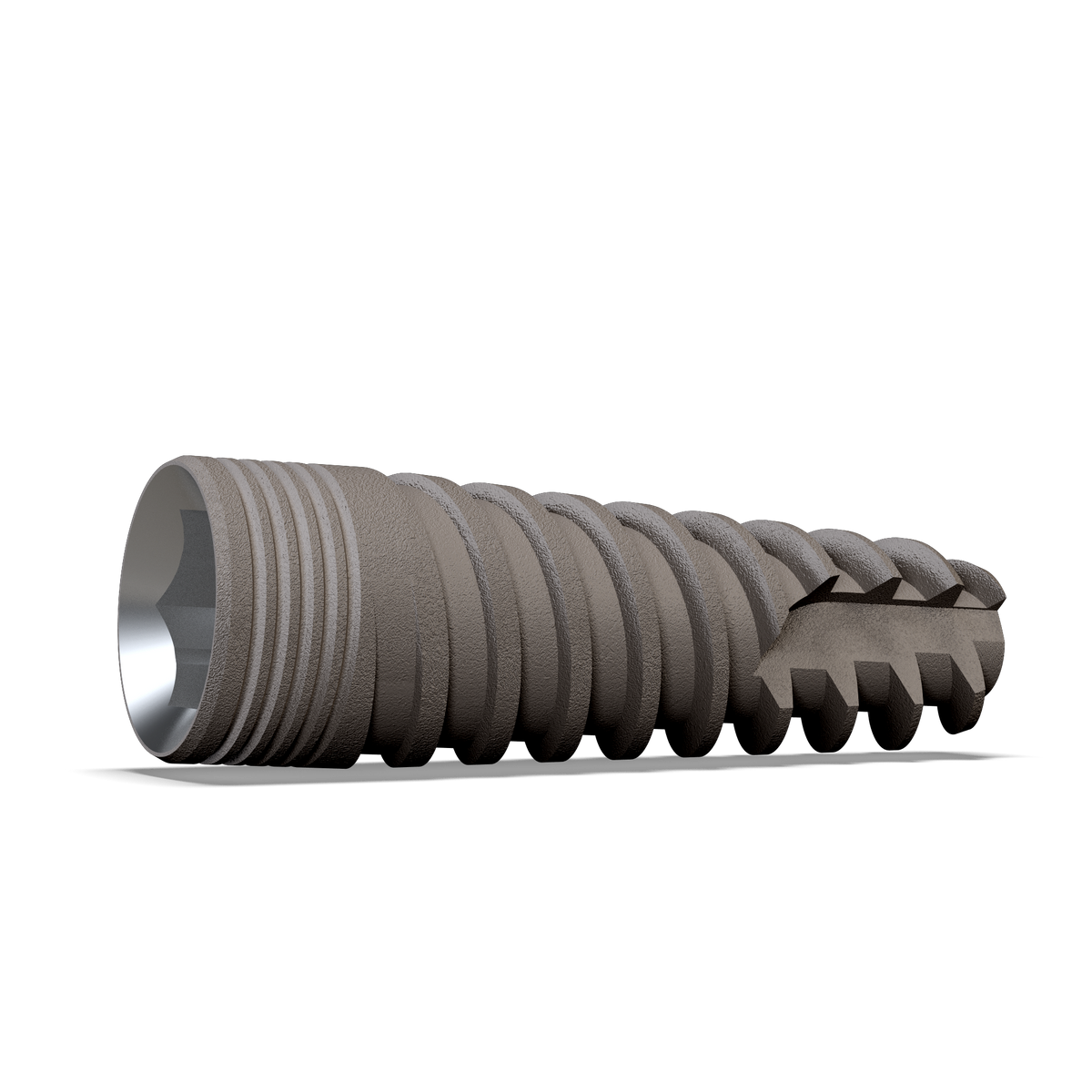

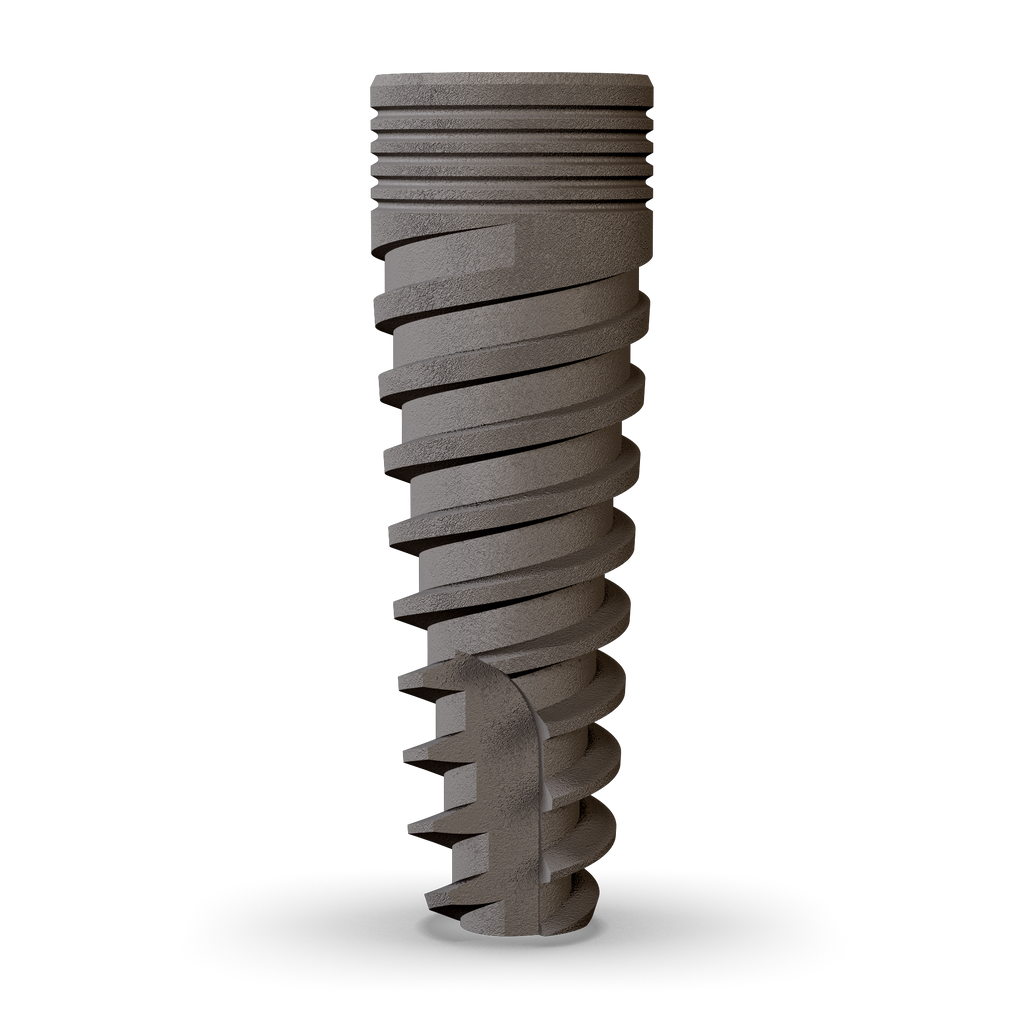

1× · The Alef implant. The whole implant body, threads and apex carry the same SLA treatment.
50× · Thread profile and apex. The apex of an Alef implant under the scanning electron microscope. You can see the thread profile, the cutting flutes that make the implant self-tapping, and the even matte texture that covers threads, flanks and core alike.
400× · The SLA texture. Overlapping craters left by grit blasting, with a finer etched texture inside and between them. The scale bar is 400 µm.
How the SLA surface is made
Sand-blasted with large grit
The titanium implant is blasted with coarse grit particles. This creates the first level of roughness: craters and ridges tens of microns wide across the threads and the core.
Acid-etched
The blasted surface is then etched in acid. Etching softens the sharp peaks left by blasting and adds a second, finer layer of micro-pits a few microns across, on top of the craters.
Sealed until placement
Each implant is packed in a sealed tube and held in a titanium sleeve, so the treated surface is not handled before it reaches the osteotomy.
Two scales of roughness on one surface: the blasted craters give bone room to grow into, and the etched micro-pits give cells and proteins a texture to hold on to.
Why surface roughness matters
More contact area
A rough surface has far more area than a smooth, machined one of the same size, so there is more surface for bone to contact.
Cell attachment
Research on SLA surfaces shows that bone-forming cells attach and spread well on moderately rough titanium.
Holds the blood clot
The micro-pits retain the blood clot and proteins that start healing, which is the first step of osseointegration.
Mechanical interlock
As new bone grows into the craters and pits, it locks with the surface, which supports implant stability during healing.
Alef drilling protocol
Drill sequence for every Alef diameter. Choose the bone density, then follow the drills from left to right. Drill diameters are in mm.
2.0 Full-length drill
3.2 Final full-length drill
3.65 Cortical layer only
Ø3.5Alef implant
1.9
2.0final
2.8cortical
Ø3.75Alef implant
1.9
2.0
2.8final
3.2cortical
Ø4.2Alef implant
1.9
2.0
2.8
3.2final
3.65cortical
Ø5.0Alef implant
1.9
2.0
2.8
3.2
3.65final
4.0cortical
Ø6.0Alef implant
1.9
2.0
2.8
3.2
3.65
4.0
4.5
5.0final
Ø3.5Alef implant
1.9
2.0
2.8final
3.2cortical
Ø3.75Alef implant
1.9
2.0
2.8
3.2final
3.65cortical
Ø4.2Alef implant
1.9
2.0
2.8
3.2
3.65final
4.0cortical
Ø5.0Alef implant
1.9
2.0
2.8
3.2
3.65
4.0final
4.5cortical
Ø6.0Alef implant
1.9
2.0
2.8
3.2
3.65
4.0
4.5
5.0final
5.5cortical
Cortical drillThe last, widest drill goes only through the cortical layer, about the top third of the depth, not to full length. Alef implants are self-tapping, so the threads cut their own path in the bone below.
Max 60 NcmMaximum recommended insertion torque for Alef implants. Torque values do not replace clinical judgment.
Protocol from the MSDI R7 product catalog. Always read the instructions for use before surgery.
Packaging
Practical packaging
MSDI implant packaging is designed for efficiency, safety, and ease of use. Its patented delivery system ensures precise placement, giving clinicians full control and enabling reliable, predictable outcomes.
Sealed tube for maximum safety.
Implant in a titanium sleeve to reduce contamination from plastic particles.
Plastic cap with a cover screw.
Triple labels for physician convenience.
Instructions for use and information leaflet.
Product details & FAQ

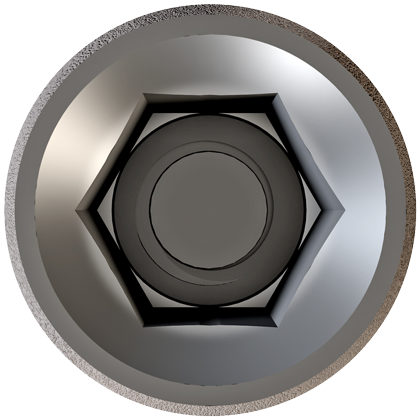

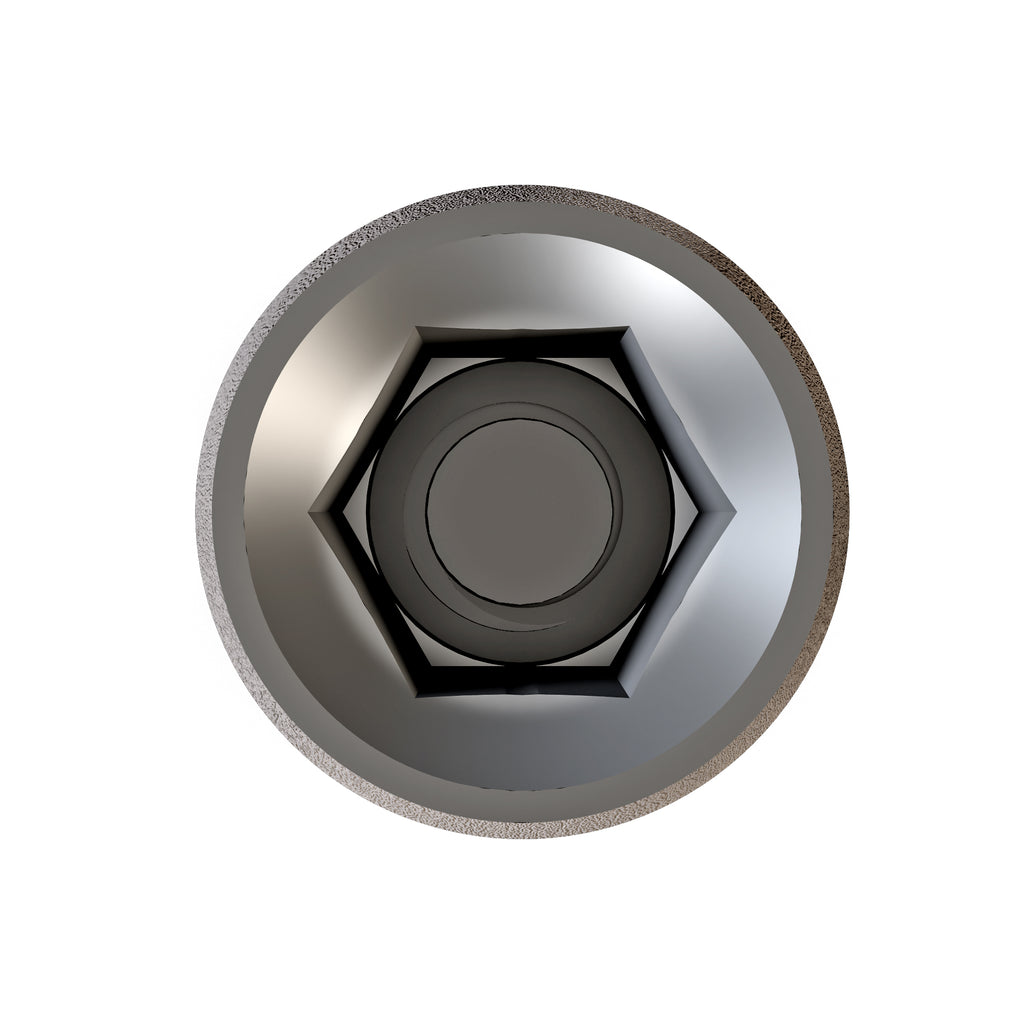

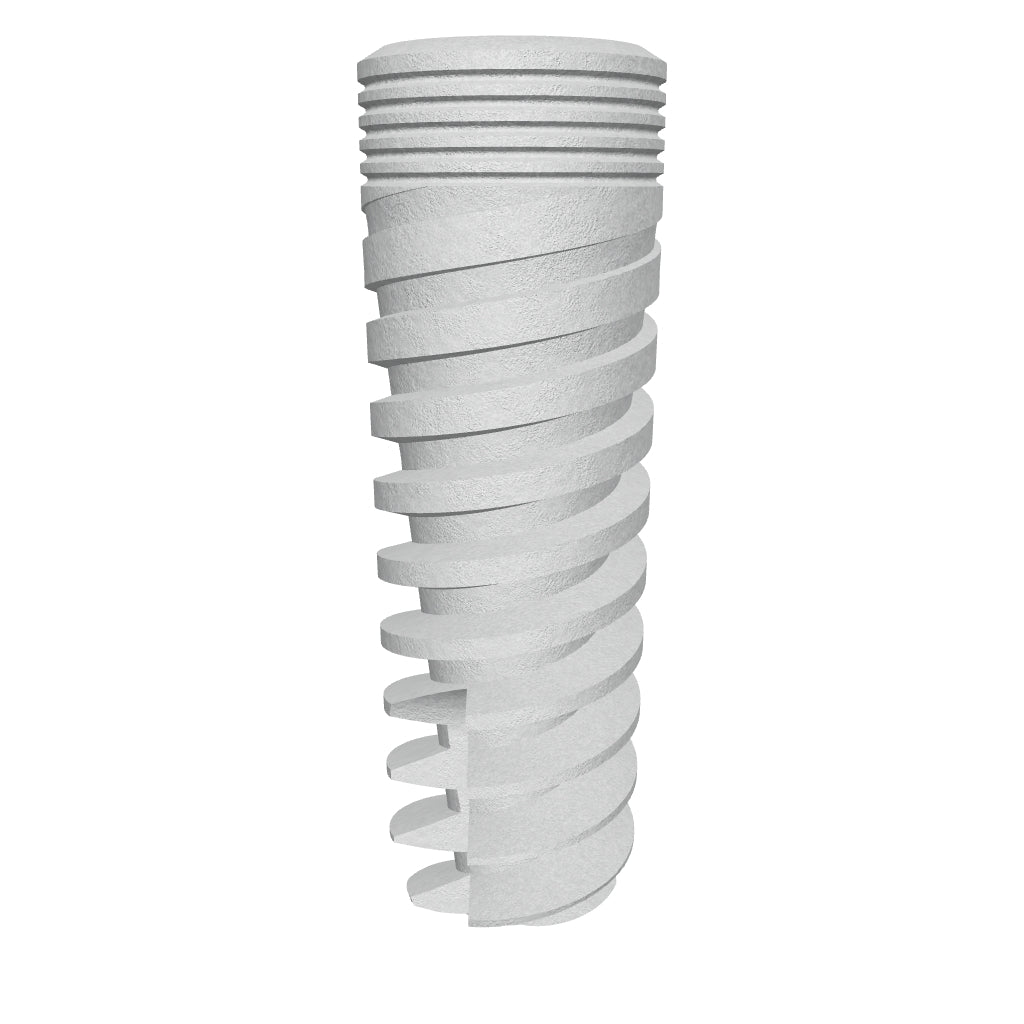

The Alef implant is a tapered, self-tapping internal-hex dental implant with an SLA-treated surface, double-lead threads and a round apex. Its platform-switching, spiral design supports primary stability in a range of bone densities. It is available in five diameters (Ø3.5–6.0 mm) and lengths from 6 to 16 mm.
Key features
Tapered body with self-tapping, double-lead threads
Select diameter and length above. Each size has its own reference code (SKU), for example AL4210 = Ø4.2 × 10 mm.
Regulatory
MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Some products may not have regulatory clearance for sale in specific territories. See the instructions for use (IFU).
Frequently asked questions
Which surface does the Alef implant have?
An SLA (sandblasted, large-grit, acid-etched) surface.
What is the recommended insertion torque?
Up to 60 Ncm for the implant.
Which sizes are available?
Diameters Ø3.5, 3.75, 4.2, 5.0 and 6.0 mm in lengths of 6 to 16 mm, depending on diameter.
