Alef Digital Analog

The Alef digital analog (DAN) is the laboratory analog used in digital workflows. After the implant position has been captured with a scan body, the model is designed and printed or milled with a space for the digital analog, which reproduces the implant connection in the physical model. The technician can then verify and finish the restoration on a model that reflects the planned position.

Specifications

• Reference: DAN
• Diameter: Ø3.85 mm
• Height: 9.5 mm
• Connection: Alef internal hex, Ø3.5 mm platform

How to use

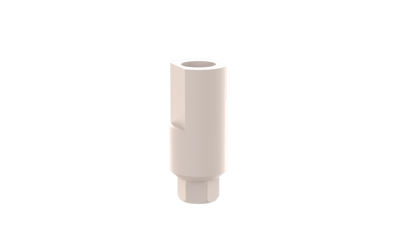

Design the model according to your CAD software’s digital-analog workflow, insert the analog into the printed or milled model, and use it with the matching scan body and Ti-base. For conventional impressions, see the implant analog.

Regulatory

MSDI products meet the highest standards set by the FDA, CE MDR, ISO 13485 and other regulatory bodies. Disclaimer: some products may not have regulatory clearance for sale in specific territories. Please read the instructions for use (IFU) before use.

Frequently asked questions

What is the difference between a digital analog and an implant analog?

The digital analog is designed for printed or milled models; the implant analog is used in conventional stone models.

Where can I find instructions for use?

At eifu.msdi-dental.com.
